PCB Stands for Printed Circuit Board

May 23, 2017

PCB Stands for Printed Circuit Board

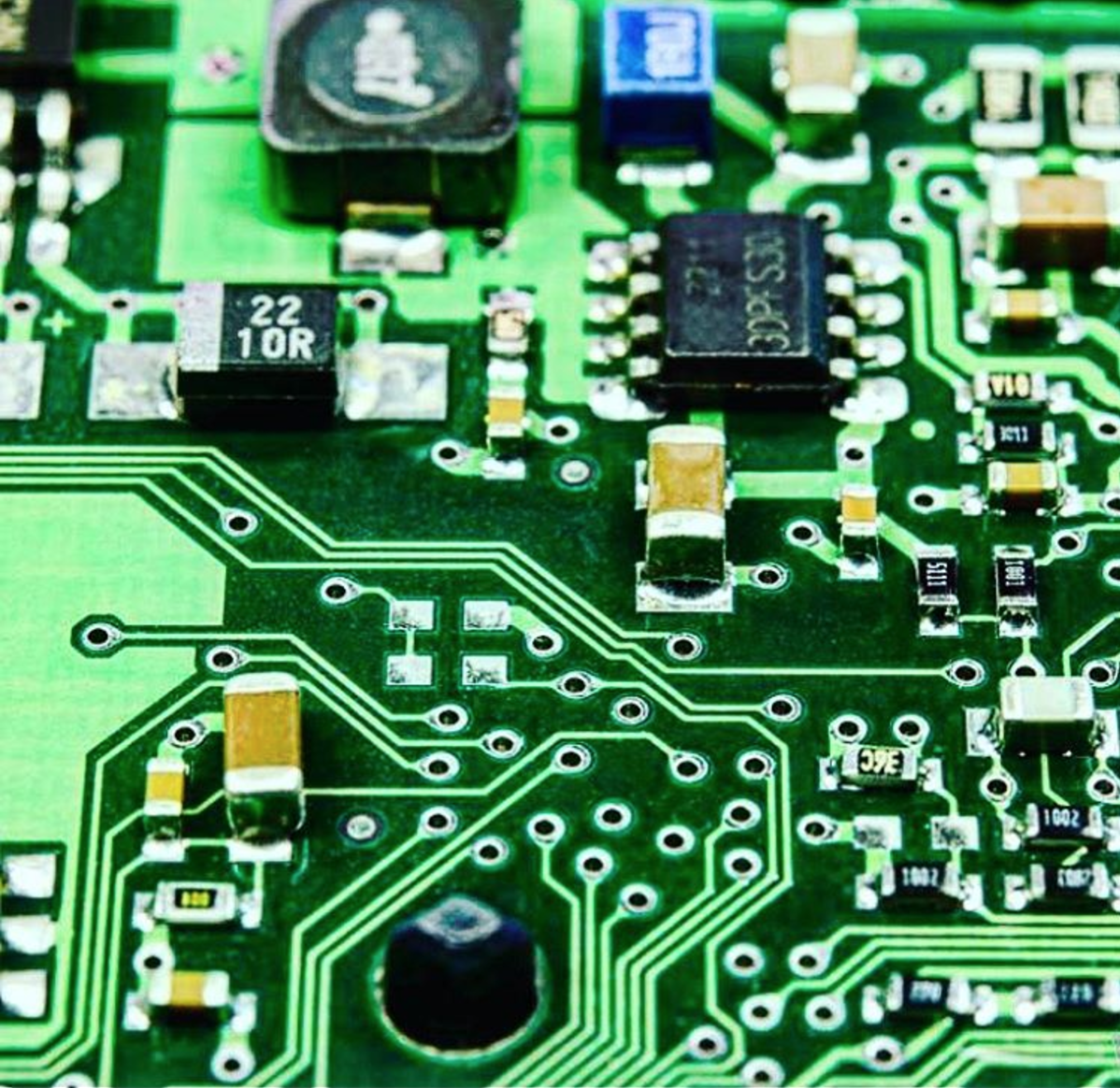

Did you know that PCB stands for Printed Circuit Board? ūü§ď PCBs are in almost every electronic device, and are what makes your electronics function! ‚ö° PCBs are basically just metal and plastic that conduct energy. Although a PCB can be in different colors, they are almost always green because they are made from a glass-epoxy, which is naturally green. ¬†The name for this green glass epoxy is solder mask.¬†
